The Space Between ~ 2.5d Model



This task was extremely helpful in learning the basics of using Fusion 360. While it did offer some challenges along the way, I was able to see what I had done wrong and fix those mistakes to create a simple 2.5d model ready for the Laser Cutter.



 Below are the layout stages of the task and the conversion into an Adobe Illustrator.

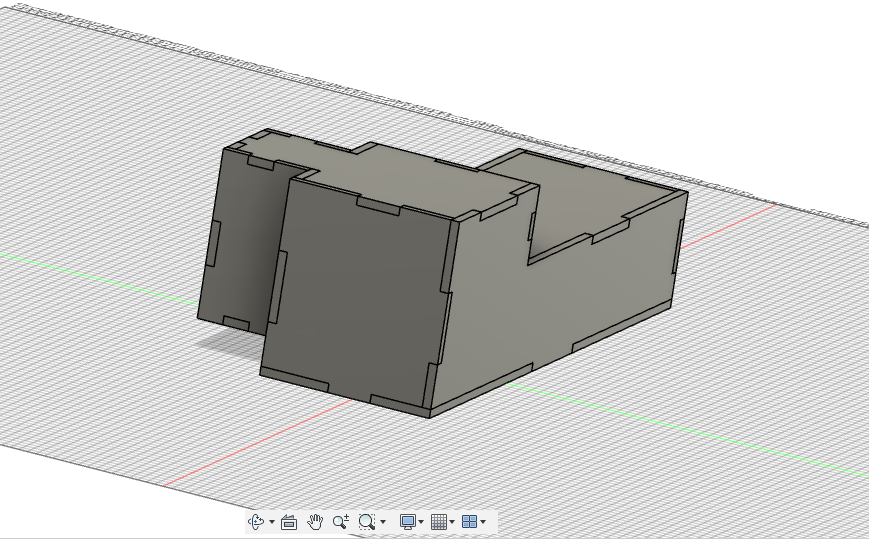

Perspective of Layout

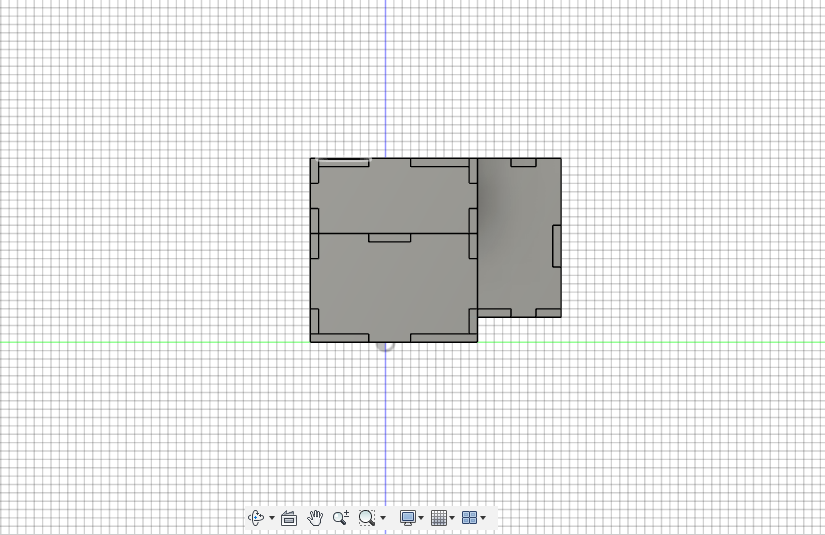

Top View ~ Layout

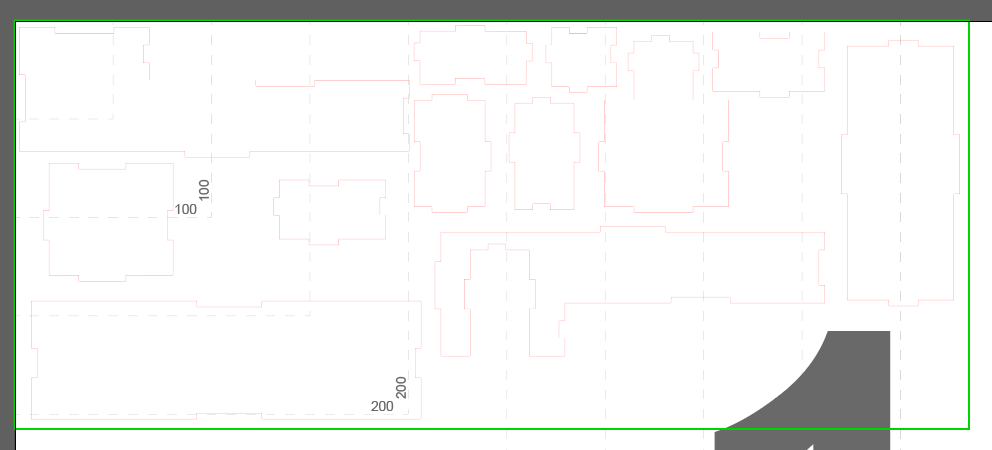

Adobe Illustrator File ~ Layout
